Pedal Line Friday :: Armando R.

Well, it’s more of a pedal tower.

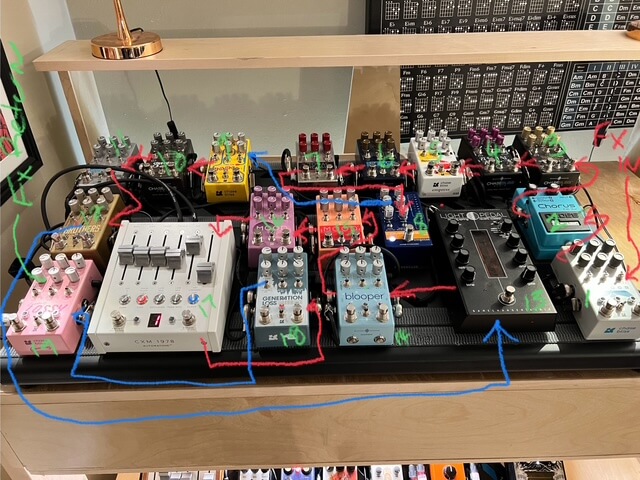

Top Board - The Amp Effects Loop, mostly time-based effects.

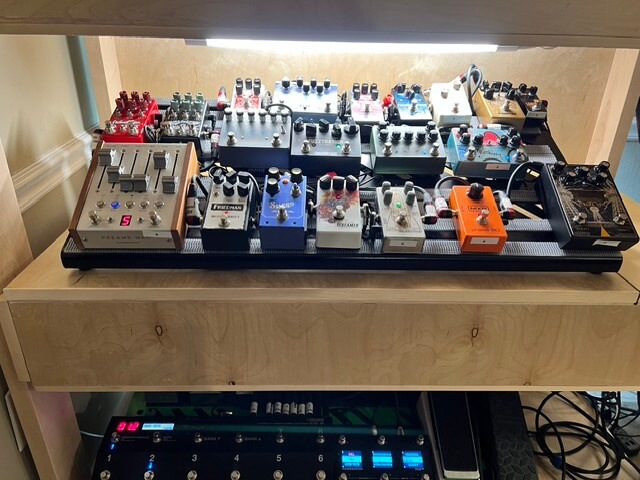

Middle Board - Front of Amp pedals, 8 individual loops

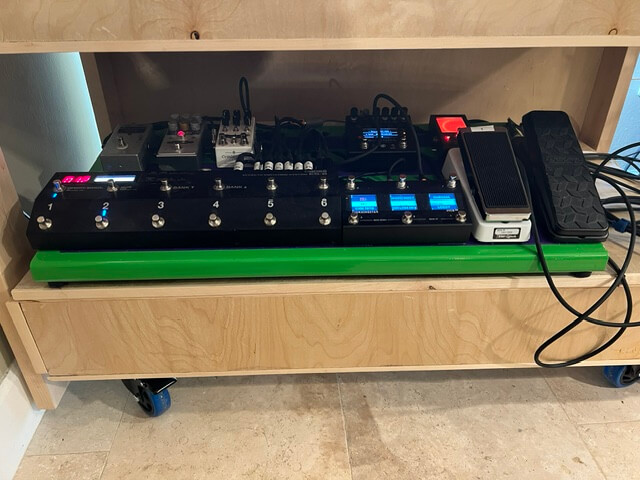

Bottom Board - Front of Foot, these get stepped on; the board comes off and stretches across the room. This has the ES-8 loop switch and a MorningStar MIDI controller (for the Top Board control). Plus a few things before the loops and a few things after, which sit in this board too.

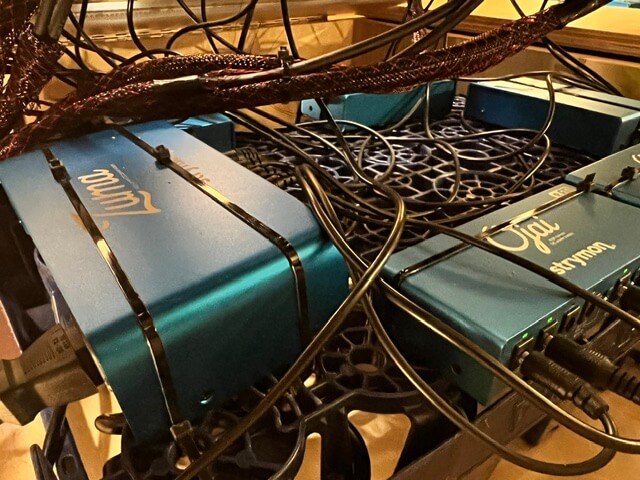

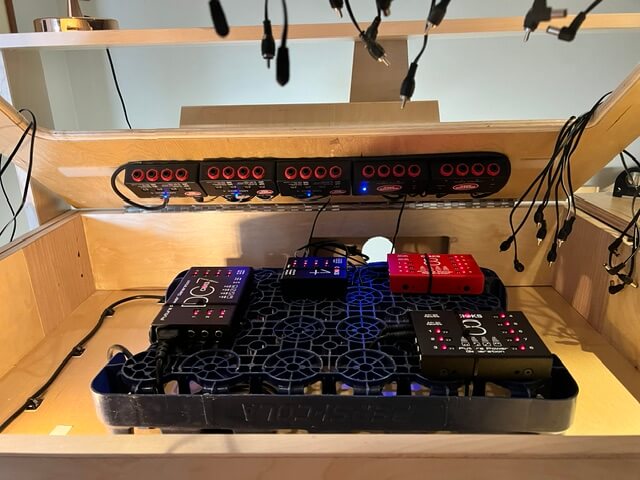

Each tier lifts like a hood, with all the power supplies and midi boxes under the boards.

I found that most of my pedals didn’t need to be touched after being set, so using loops and midi I can turn on/ off and switch presets and loop to combine for a given tone. So went with a master /slave board setup.

Each tier also has storage on the right side (flip lid) for patch cords, dual-lock rolls, and related stuff.

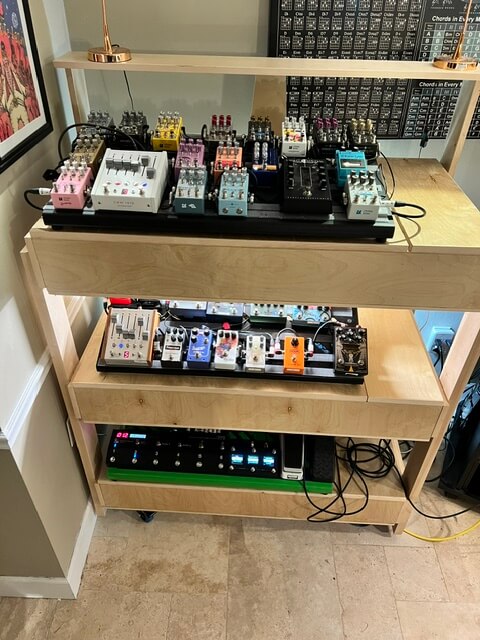

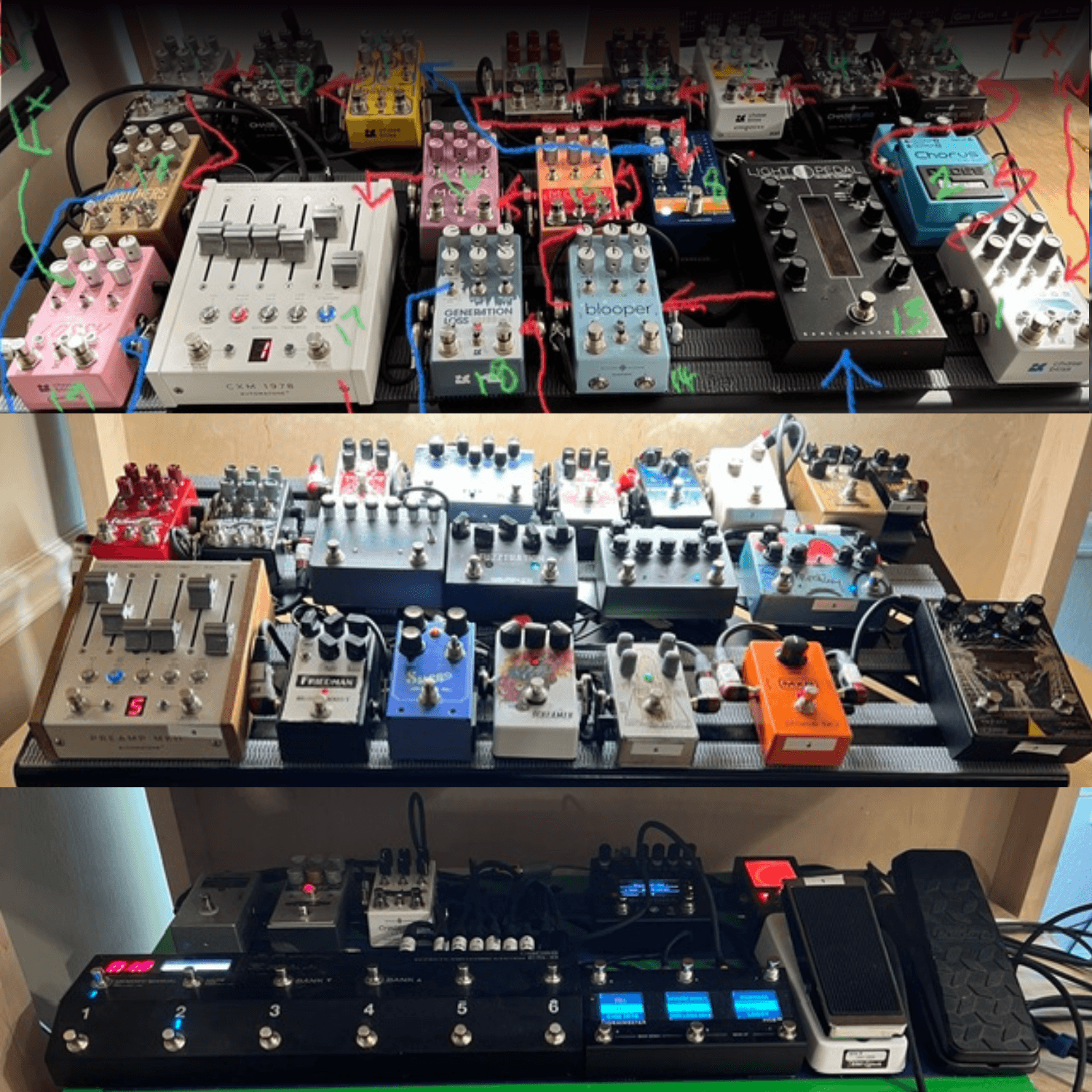

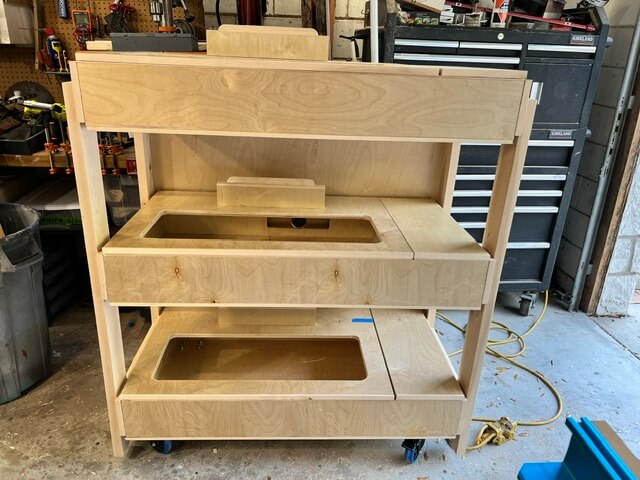

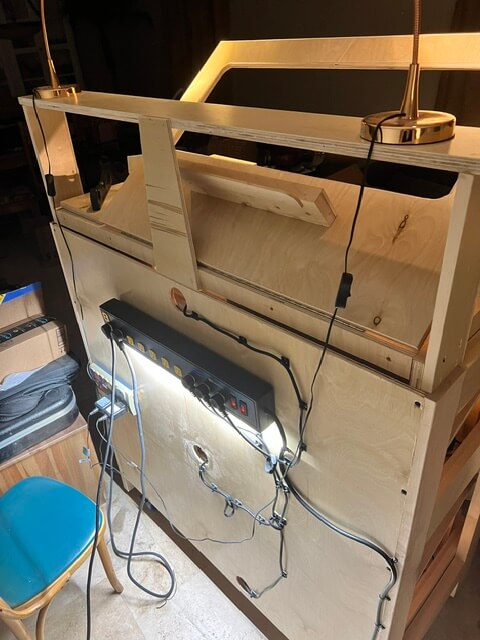

Pictures of the whole thing (empty and full), each board, and a little under-the-cover stuff.

(I’m in the process of putting it all back together as I had to take the boards off to save it during the flooding here in FL during the hurricanes.) It actually has more pedals going on and a big SurfyBear that sits in front of the coils spring reverb in the Amp effect loop.

But these were the best pics I had from pre-flood.

Figured this will bring a few smiles and a few “but why’s”….

Definitely a situation of way more gear than skill, but when I retire in a year, I get to dig in and really fine-tune the loops and build a billion presets for all the Chase Bliss stuff…
