Since you asked for pedalboards, here's one currently I'm using for a stage production of The Rocky Horror Show at the Straz Center For The Performing Arts in Tampa, Florida mounted by Jobsite Theater, the resident theater company at the Straz. The show is presented in the 320-capacity Jaeb Theater and runs through August 4. http://jobsitetheater.org/rocky-horror/

My main guitar for the show is a homebrew Tele build (NoMoonLaser pine body, Warmoth neck) with SD Seth Lover neck/Barden bridge magnetic pickups, a Fishman PowerBrdige, and a TRS jack. It has a mini toggle switch that selects magnetic pickups, the PowerBridge, or both. The magnetics tone control is wired to only affect the bridge pickup.

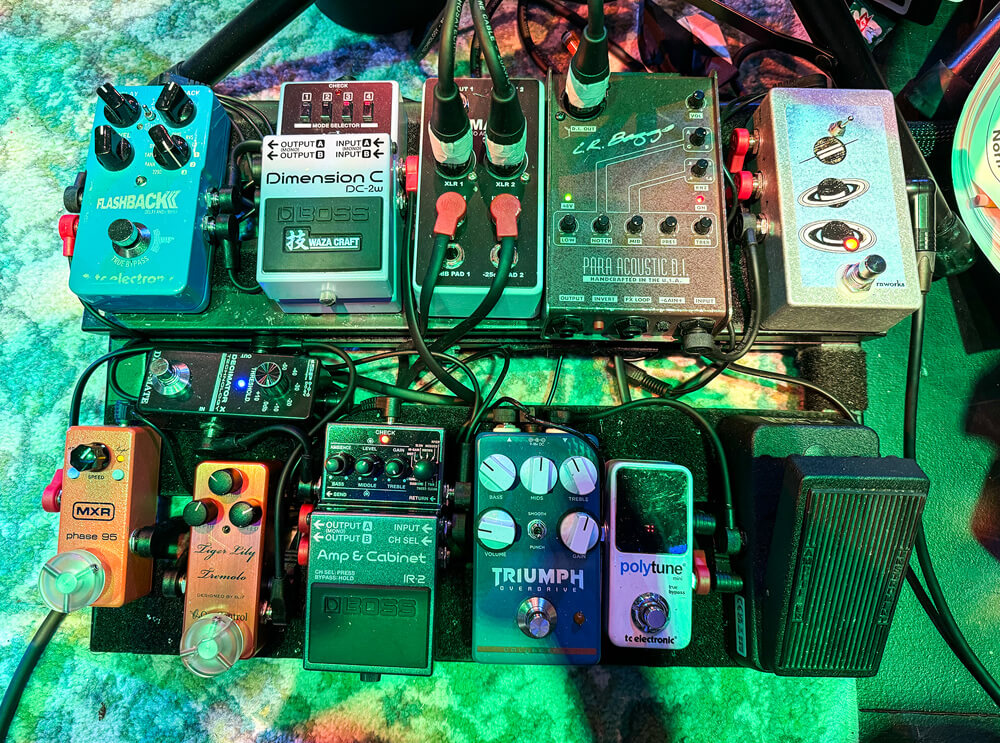

First stop is a Saturnworks custom splitter/mute/switchable buffer that splits the TRS input to

A. TC Polutune MIni

B. LR Baggs ParaDi (for the Powerbridge)

C. electric signal chain...

Dunlop Cry Baby Mini 535Q Auto-Return Wah

Wampler Triumph Overdrive

BOSS IR-2 Amp & Cabinet (Clean & Brit models with Celestion and Friedman IRs I loaded)

RD Effects Ax Max 2 Stereo Active DI

in the IR-2's loop:

ISP Decimator X (for theater work, the quiet parts must be DEAD SILENT)

One Control Tiger Lily Tremolo

MXR phase 95 (using the script Phase 45 settings)

BOSS DC-2W Dimension C Waza (buttons 3 & 4 selected, stereo out)

TC Flashback 2 (modulated ping-pong delay)

The Macbook runs the band's IEM rig (Behringer X18R) and can record multitrack to Logic Pro for band and cast review of the show.

Mark W

Tampa FL
